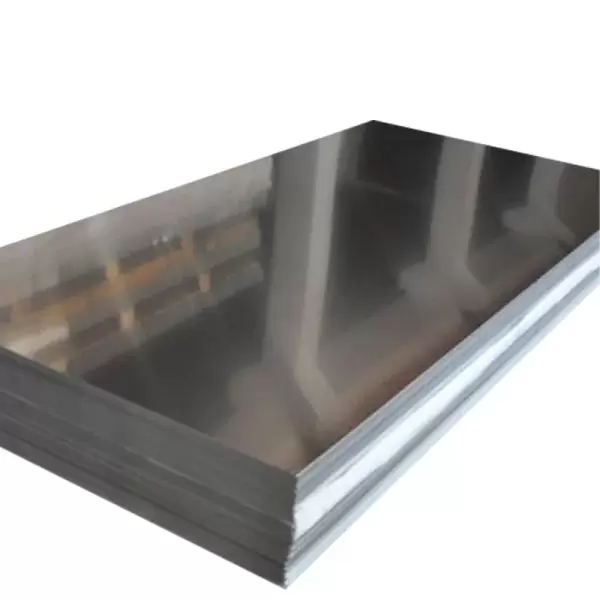

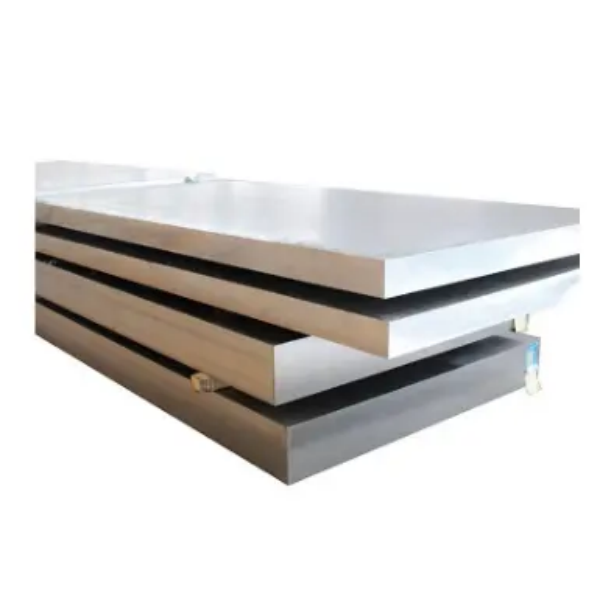

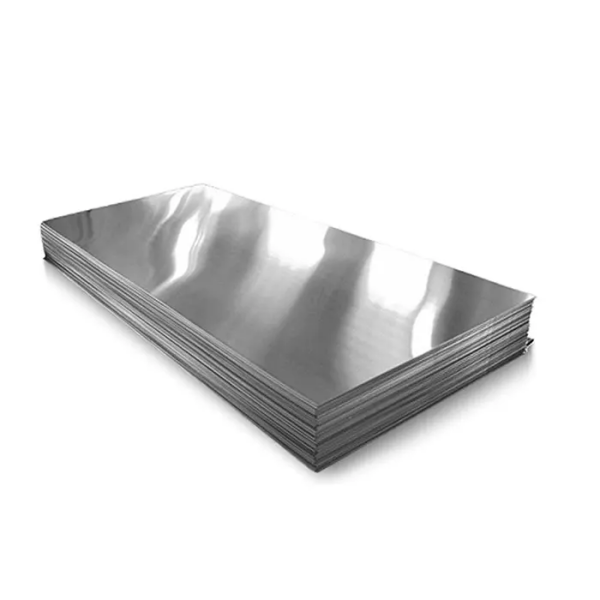

Aluminum Plate
Aluminum Plate is made of one of the most versatile of all of the aluminum alloys. Aluminum Plate is the alloy of choice for all-purpose applications. Aluminum Plate is an aluminum-silicon-magnesium alloy, strengthened by precipitation hardening. This alloy has medium strength, formability, weldability, machinability and corrosion resistance. Aluminum plate is used for tooling plate, architectural applications, transportation equipment, bridge railing components, and is useful in welded structural application. We stock Aluminum Plate in thickness .250'' through 16'' thick in stock available for immediate delivery.
Precision cutting (+/- .005'') available. call for a quote
Standard Cut Tolerance: -0'' to +1/8''
Product description
Aluminum Plate / Sheet |
Thickeness / Width / Length | As required |
Grade | 1000 series; 2000 series; 3000 series; 4000 series; 5000 series; 6000 series; 7000 series |
Certification | ISO, GB/T, etc. |
Processing Item | Cutting, slitting, laminating, sawing, punching, wire drawing, oxidation, aluminum sheet embossing, etc. |
Package | Standard export package, suit for all kinds of transportation, or as required |
Loading Port | Any port in China |
Satisfy Your Needs | We can customize product specifications, sizes and shapes according to your requirements. |
Contact | If you have any questions, please feel free to contact us. 24 hours online service, very glad to communicate with you! |
Series | Represent | Features |
1000 Series | 1050, 1060, 1100 | Among all the series, the 1000 series belongs to the series with the most aluminum content. |
2000 Series | 2A16(LY16), 2A02(LY6) | 2000 series aluminum sheets are characterized by high hardness, among which the copper content is the highest, about 3-5%.
The main uses of 2024 aluminum sheet: aircraft structures, rivets, truck hubs, propeller assemblies and various other structural parts. |
3000 Series | 3003, 3A21,3004 | 3000 series aluminum sheets are mainly composed of manganese.The content is between 1.0-1.5, which is a series with better anti-rust function. |
4000 Series | 4A01 | 4000 series aluminum plates belong to the series with higher silicon content. It belongs to building materials, mechanical parts, forging materials, welding materials. |
5000 Series | 5052, 5005, 5083, 5A05 | The main features are low density, high tensile strength and high elongation. |
6000 Series | 6061, 6063 | It mainly contains magnesium and silicon and is suitable for applications requiring high corrosion resistance and oxidation resistance. Good workability, easy to coat, and good workability. |
7000 Series | 7075, 7005 | It is an aluminum-magnesium-zinc-copper alloy, a heat-treatable alloy, a super-hard aluminum alloy with good wear resistance. |
Technical data
Mechanical Property |
ALUMINUM
ALLOY | Grade | Normal
Temper | Temper | Tensile Strength
N/mm² | Yield Strength
N/mm² | Elongation% | Brinell Hardness
HB |
Plate | Bar |
1XXX | 1050 | O,H112,H | O | 78 | 34 | 40 | - | 20 |
1060 | O,H112,H | O | 70 | 30 | 43 | - | 19 |
Al-Cu
(2XXX) | 2019 | O,T3,T4,T6,T8 | T851 | 450 | 350 | 10 | - | - |
2024 | O,T4 | T4 | 470 | 325 | 20 | 17 | 120 |
Al-Mn
(3XXX) | 3003 | O,H112,H | O | 110 | 40 | 30 | 37 | 28 |
3004 | O,H112,H | O | 180 | 70 | 20 | 22 | 45 |
Al-Si (4XXX) | 4032 | O,T6,T62 | T6 | 380 | 315 | - | 9 | 120 |
Al-Mg
(5XXX) | 5052 | O,H112,H | H34 | 260 | 215 | 10 | 12 | 68 |
5083 | O,H112,H | O | 290 | 145 | - | 20 | - |
Al-Mg-Si
(6XXX) | 6061 | O,T4,T6,T8 | T6 | 310 | 275 | 12 | 15 | 95 |
6063 | O,T1,T5,T6,T8 | T5 | 185 | 145 | 12 | - | 60 |
Al-Zn-Mg
(7XXX) | 7003 | T5 | T5 | 315 | 255 | 15 | - | 85 |
7075 | O,T6 | T6 | 570 | 505 | 11 | 9 | 150 |
Product package
