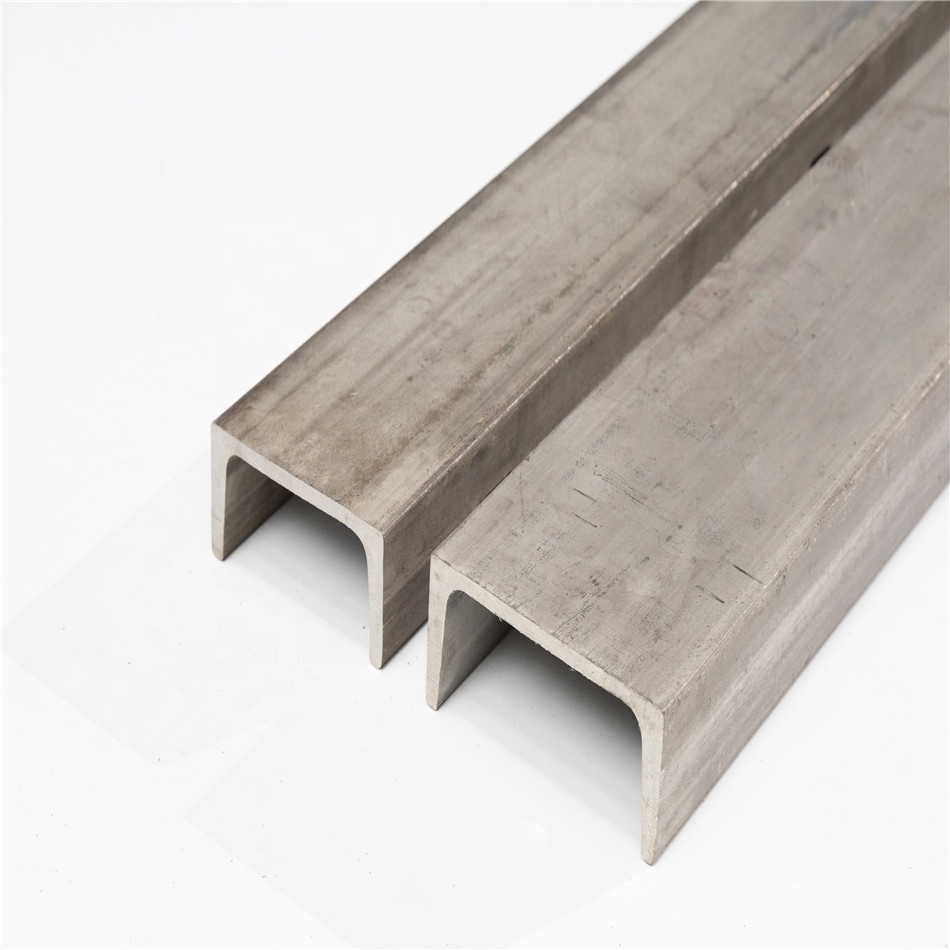

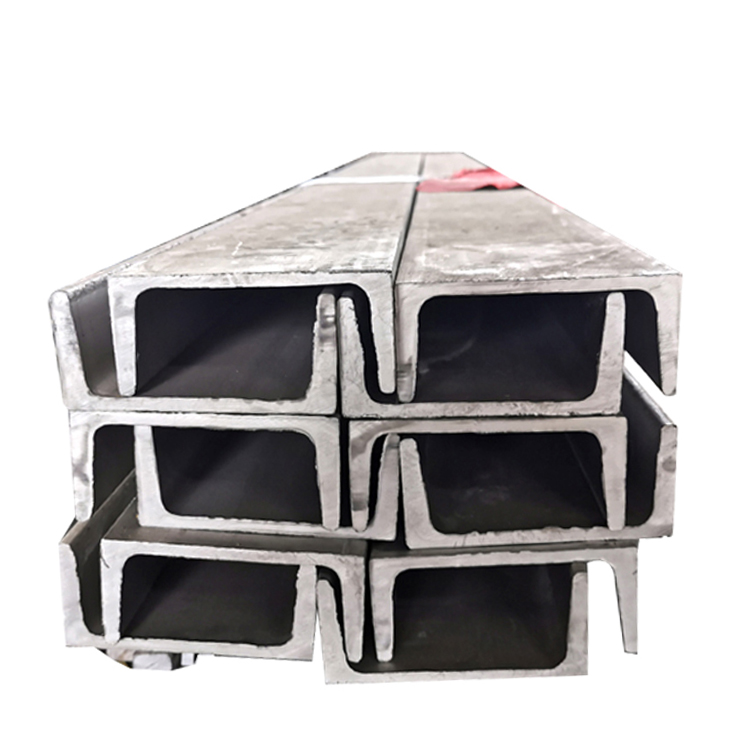

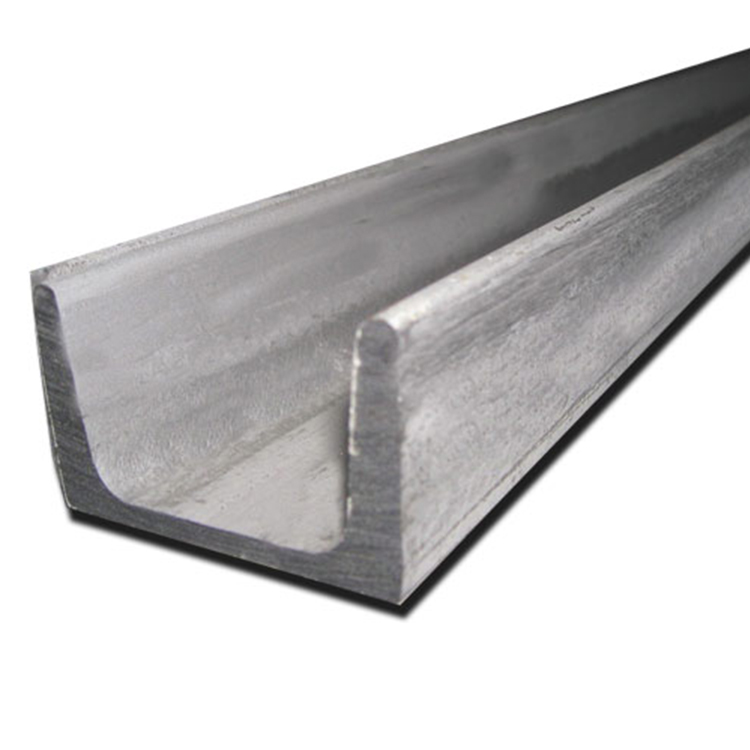

ASTM A36 Steel Channel - Galvanized or Primed

ASTM A36 steel channel is hot-rolled, low carbon steel section with good properties including welding, machinability and ductility. A36 structural channel have two types of sizes: UPN & UPE - tapered flanges and parallel flanges respectively. If you can't find the specific size in the table below, bespoke channel dimensions are available.

ASTM A36 mild steel channel could be galvanized or primed to add a layer of protective coating to resist environment or weather corrosion. The specific zinc coating can be ordered depending on your requirements.

Applications:

· Building or construction supporting components.

· Framing supports for truck, trailer, equipment.

· Ceiling channel system.

· Everyday uses like worktable.

Product description:

· Item: ASTM A36 Steel Channel.

· Dimensions: UPN & UPE.

· Web Width: 80 - 200 mm.

· Web Thickness: 6 - 8.5 mm (UPN) & 4.5 - 5.2 mm (UPE).

· Flange Width: 45 - 75 mm (UPN) & 40 - 76 mm (UPE).

· Flange Thickness: 8 - 11.5 mm (UPN) & 7.4 - 9.0 mm (UPE).

· Length: 3 m, 6 m, or as required.

· Surface Treatment: non-treatment, galvanised or primer.

· Note: Special channel sizes are available on order.

NOTE: Copper content is available when your order is specified.

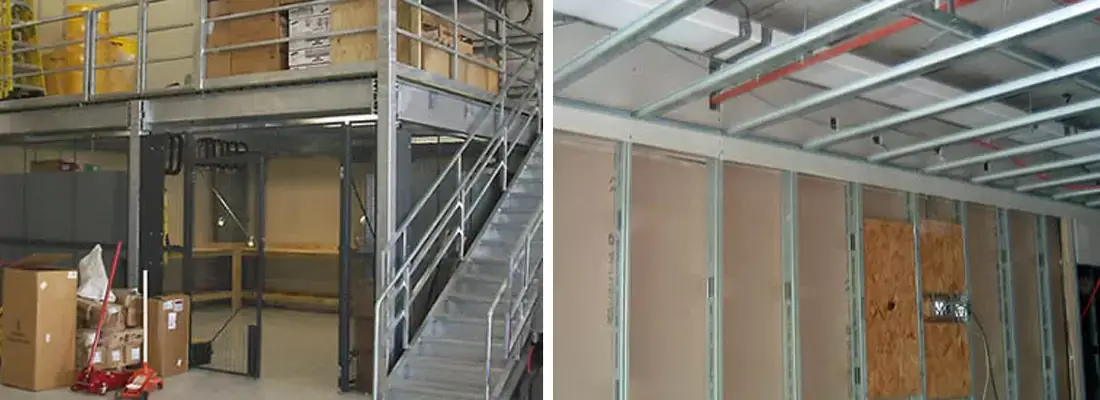

Product application

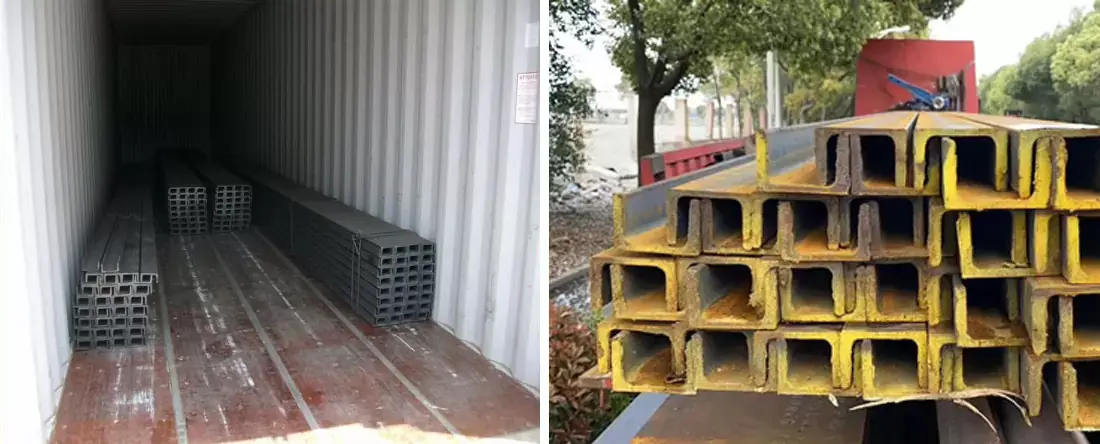

Product package
